Lomeho 4 Channels Sound Mixer 48V 99 Digital Effect Portable Audio Table Bluetooth USB PC Record Mixing Console Church AM-AX3
Lomeho 4 Channels Sound Mixer 48V 99 Digital Effect Portable Audio Table Bluetooth USB PC Record Mixing Console Church AM-AX3
Couldn't load pickup availability
SPECIFICATIONS
Built-in Battery: No
Certification: CE
Connect to Computer: Play and Record
Effects: 99 DSP Effects
Input Channel: 4 Channels (2 Mono+1 Stereo)
Model Number: AM-AX3
Phantom Power: Channel Individual 48V
Power Supply: DC 12V 2A
Type: Mixers
Type 1: 4 channel audio mixer
USB Function: Play and Record
type 2: Bluetooth audio mixer
type 3: 48V audio mixer
type 4: karaoke audio mixer
type 5: Home audio mixer

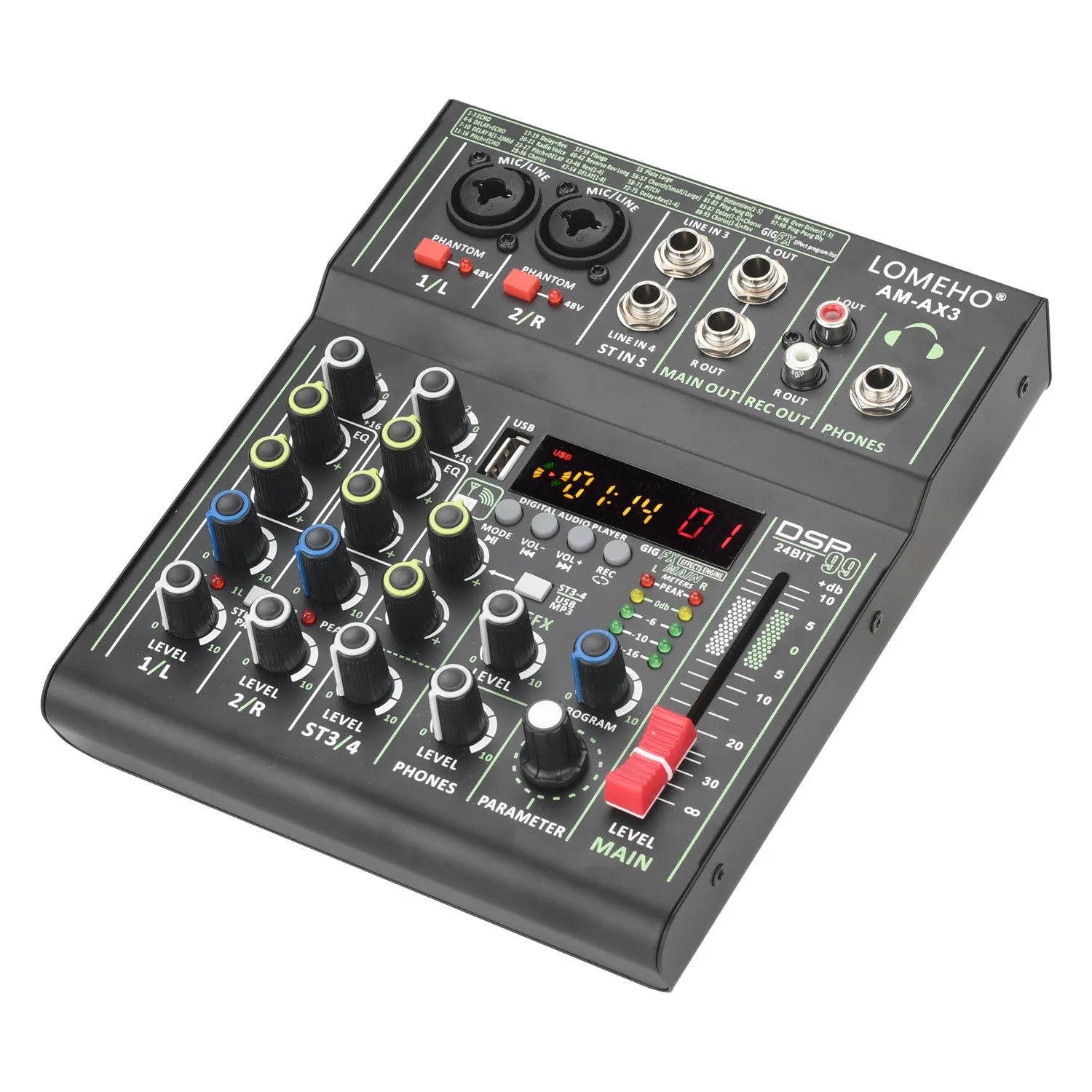

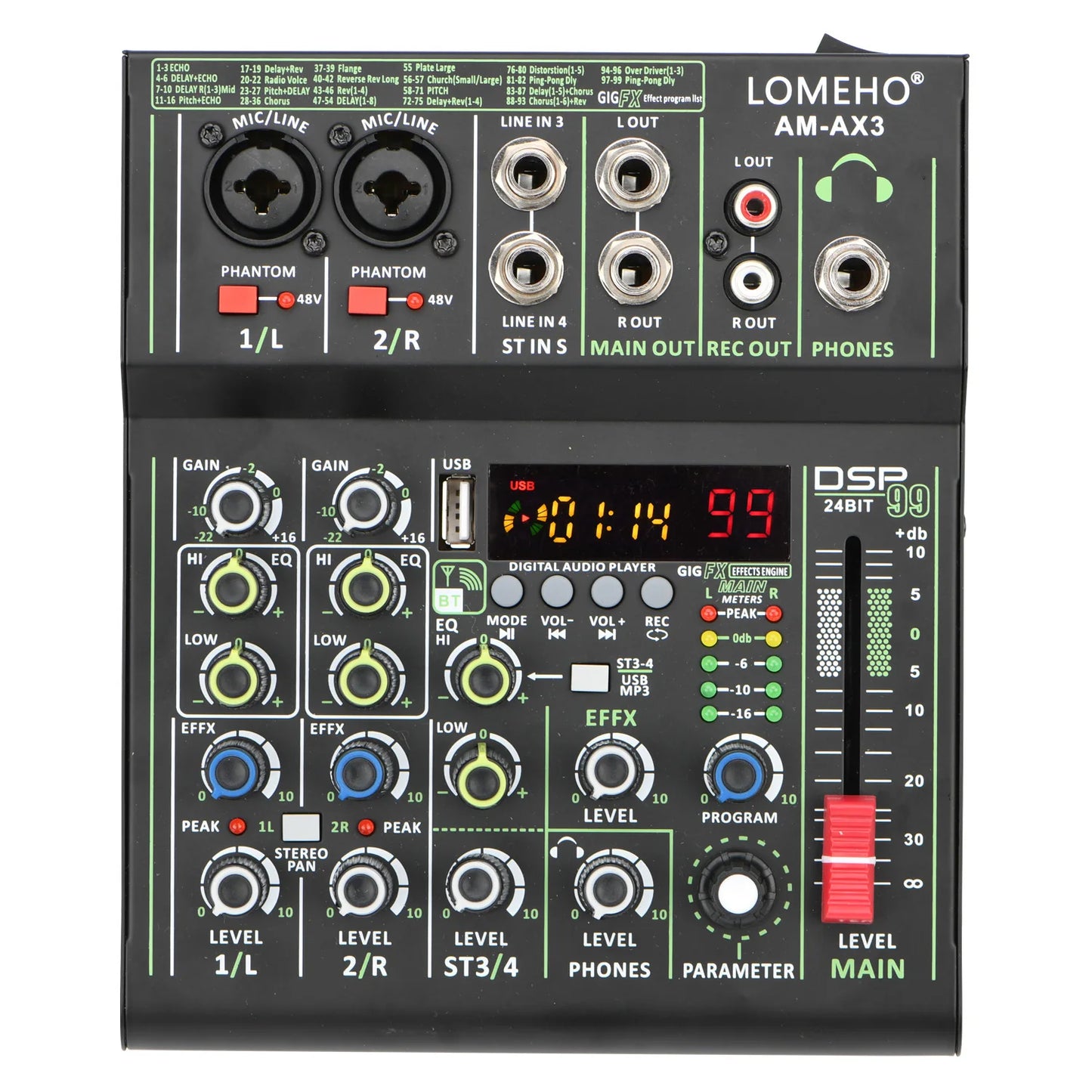

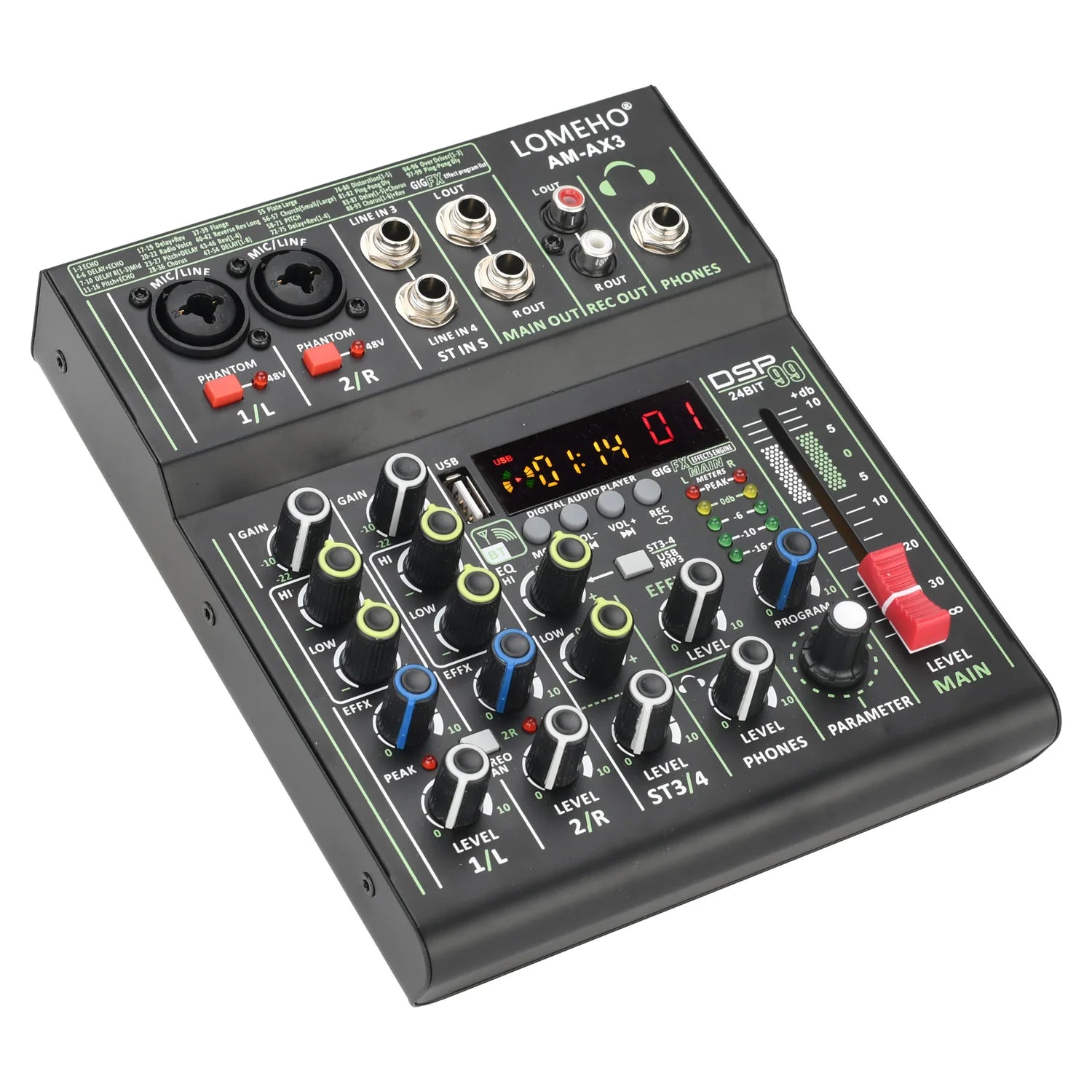

LOMEHO AM-AX3
4 Channel Audio Mixer Individual +48V Phantom Power 99 DSP Effects Bluetooth USB Computer Play Record Mixing Console for home party,karaoke,singing, ect.
Selling Point:
1. Power supply: DC 12V 2A.
2. 4 Channels (2 Mono +1 Stereo).
3. Bluetooth function.
4. 99 DSP Effects.
5. USB Play and Record.
6. Computer play and record.
7. Individual +48V phantom power.
8. Stereo pan button.
Power supply:
1. Power suuply: DC 12V 2A
2. Optional plug
(1) EU plug.

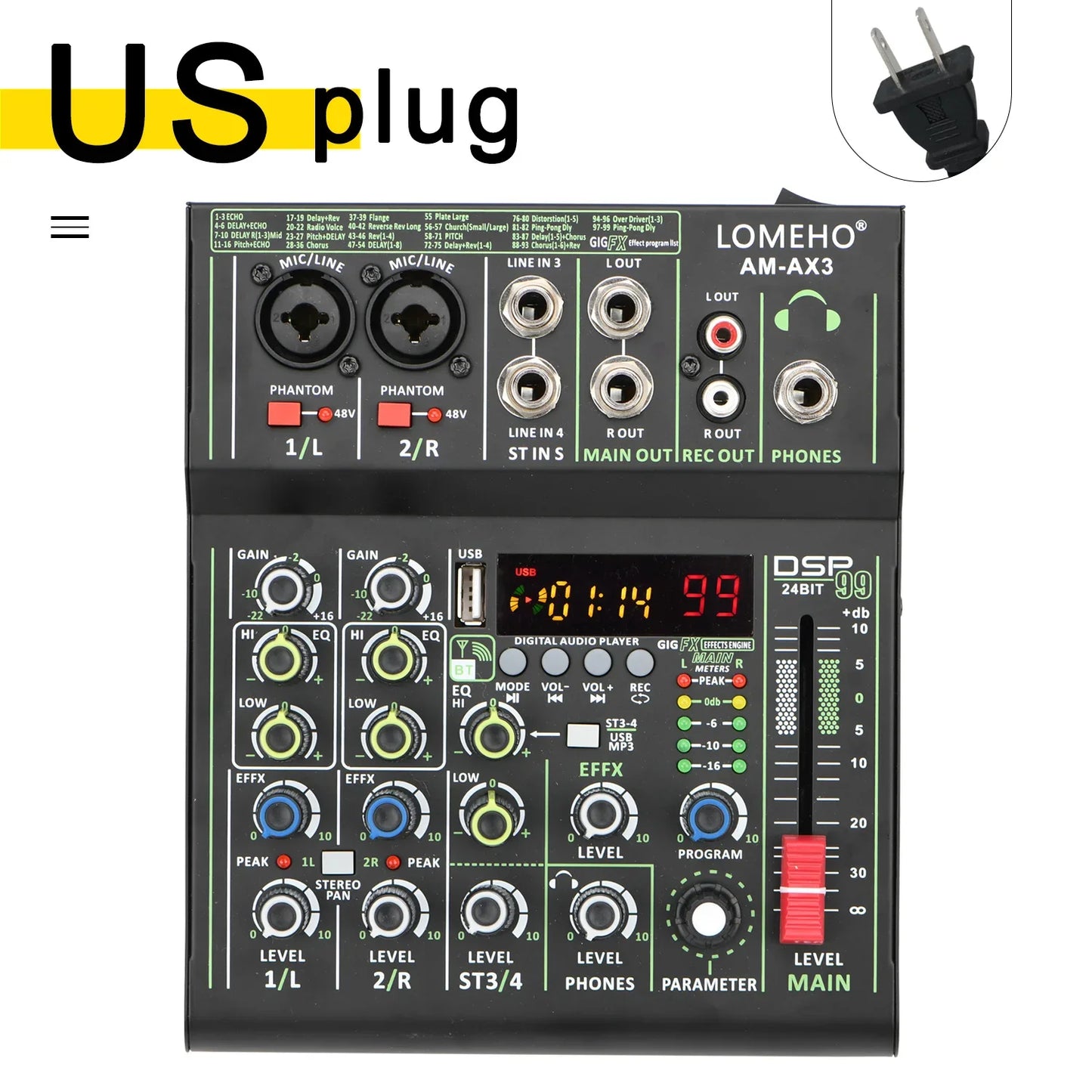

(2) US plug.
(3) AU plug.

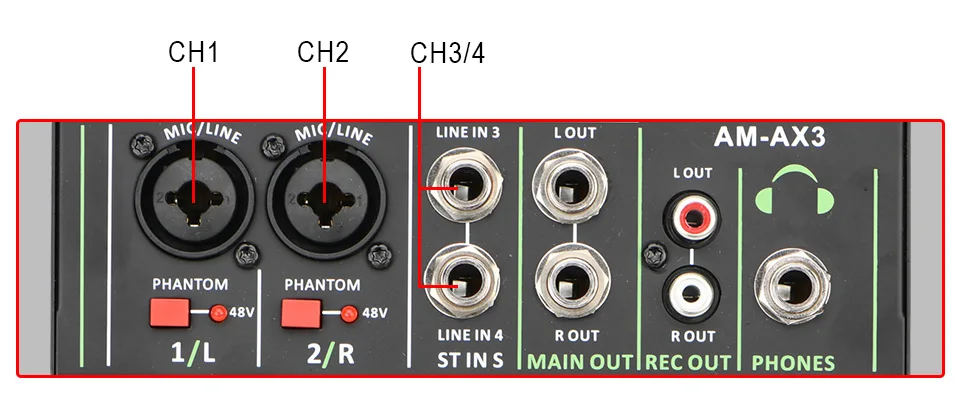

4 Channels
1). CH1/2 are Mono channels, CH3/4 is stereo channel.
2). For signal from CH1/2, L/R of main out will output same signal.
3). For signal from CH3, L of main out will output the signal, R will not output signal.
4). For signal from CH4, R of main out will output the signal. L will not output signal.
Common unconnectable input devices:
For these device, mixer can not supply working power, device can not work normal though you use plug adapters.

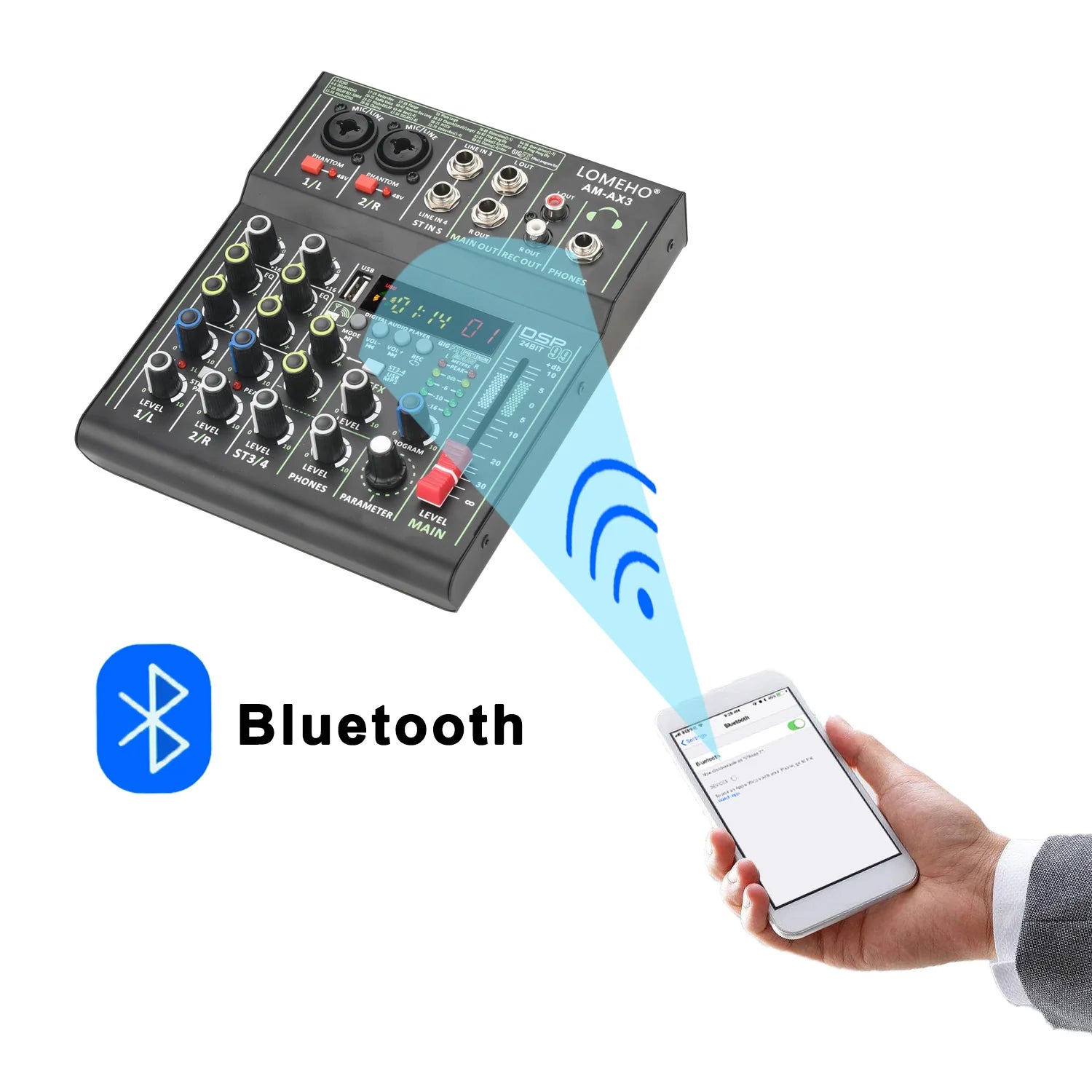

Bluetooth function:
1. Mixer only can accept bluetooth signal, it can not send out bluetooth signal.
2. After pairing, please press down "ST3-4/USB MP3" button, then you can adjust the signal from CH3/4 to main output.
99 DSP effects:
1. Parameter: Choose effect.
2. Program: Adjust parameter.
3. Level: Adjust the output level.
Connection with U-Disk
(U-Disk is not included,buyer need buy it by himself)
1. U-Disk format: FAT32 ( Do not support NTFS).
2. Play format: MP3, WMA,WAV,FLAC.
3. Record format: MP3.
(Before recording, please copy a song in the U disk, otherwise, the disk may not be possible to record).
4. Sampling frequency: 16 Bit 48KHz.

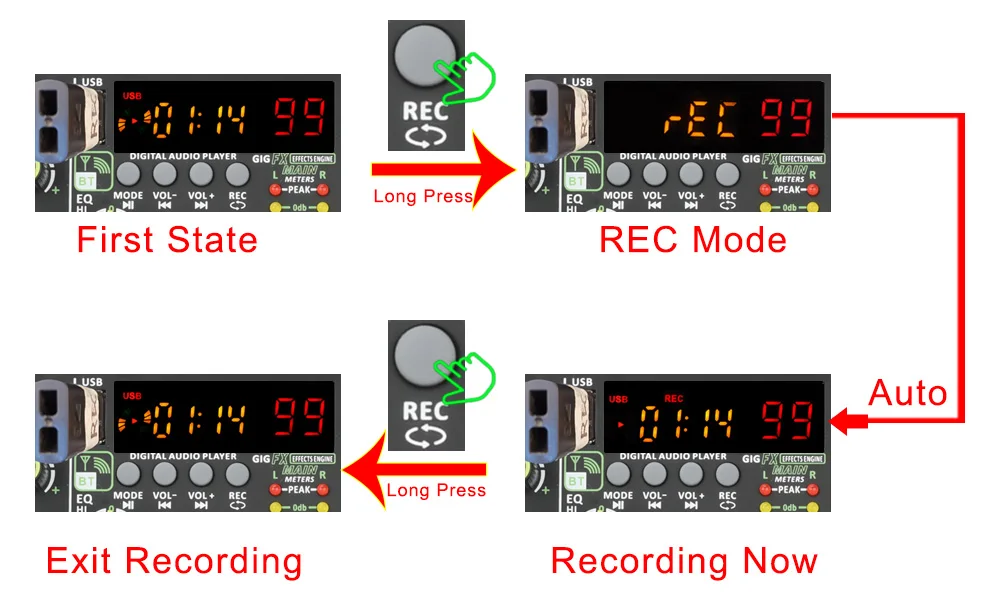

5. Record operation:
(1) Long press "REC" button to switch to recording mode, U-DISK will record automatically.
(2) Long press "REC" to exit the recording, and start playing the latest recording file.
6. Please press down "ST3-4/USB MP3" button, then you can adjust the signal from CH3/4 to main output.

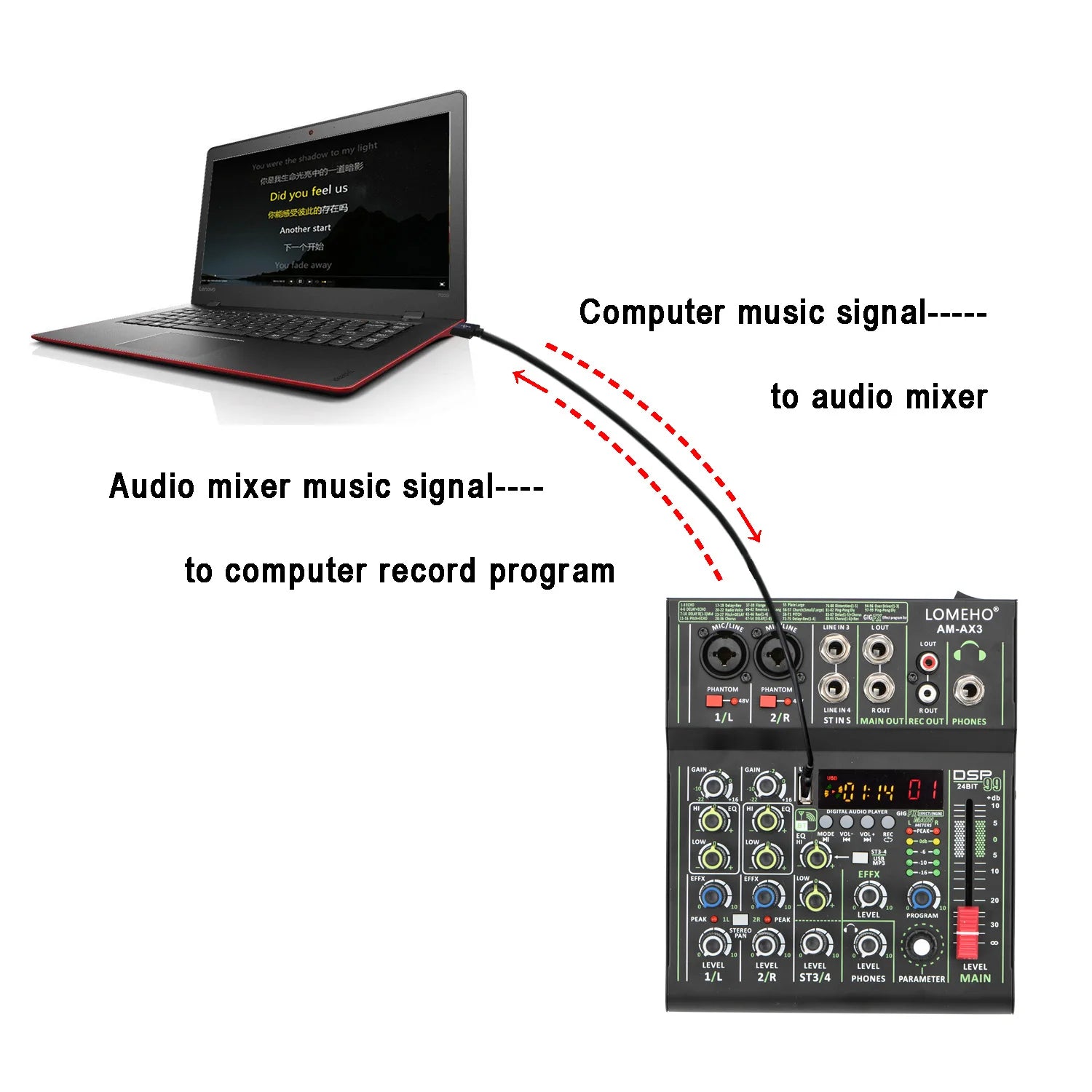

Connection with PC
(USB cable is not included, buyer need buy it by himself).
1. Computer play
Buyer downloads music play software, and choose mixer as speaker. Then computer music signal will come into mixer.
Please press down "ST3-4/USB MP3" button, then you can adjust the signal from CH3/4 to main output.
2. Computer record
Buyer downloads music record software, choose mixer as microphone. Then mixer signal will come into computer.
3. Please note, you only can record MONO music.

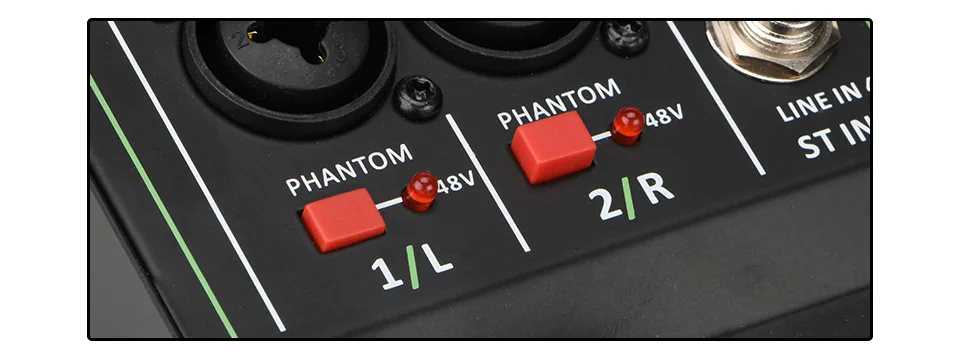

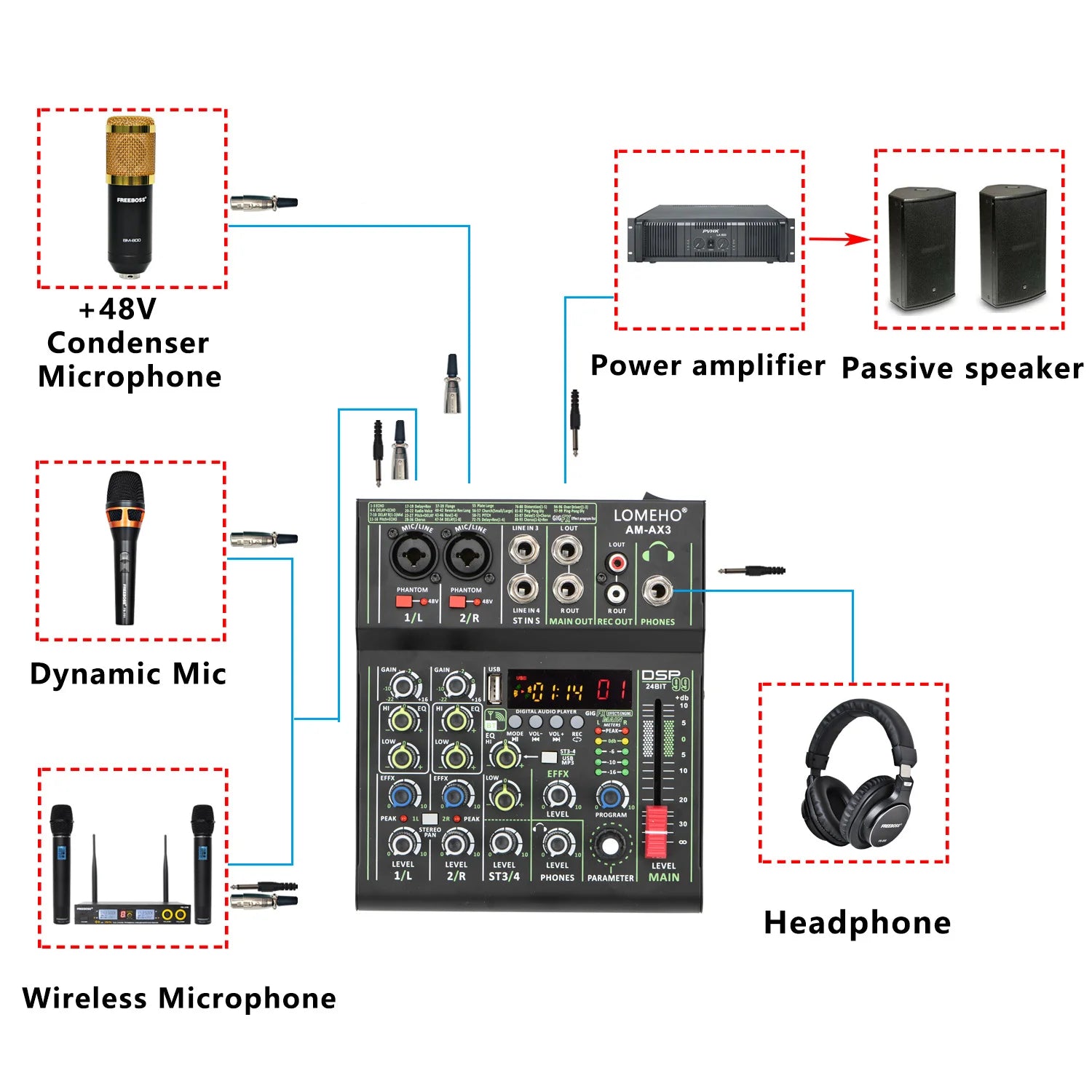

Individual +48V phantom power:
1. Phantom power is only for XLR socket.
2. You can use +48V condenser microphone and dynamic microphone through XLR socket at same time.
3. Connection with dynamic microphone
1) We recommend using XLR cable to connect mic to mixer. If you use 6.3 plug,the volume will be small.
2) Please do not power on +48V phantom power, otherwise the power maybe burn the dynamic microphone.
4. Connection with +48V condenser microphone
1) If your condenser microphone supports +48V, please power on +48V phantom power.
2) If your condenser microphone does not supports +48V, you can not use the microphone.
Gain knob:
1. It determines the channels input gain.
2. If you adjust the knob to the max, it will increase the noise too. Please do not adjust to the max if it is not necessary.
Peak light:
Light will be on when the volume of input and or post-equalizer sound is too high. If it is lit, turn the [Gain] knob to the left to lower the volume.
Stereo Pan:
Button is bounced up: [MONO].
Sound input to channels 1/L or 2/R can be heard from both the right and left speakers. If you use the 1/L or 2/R individually, set the switch to this setting.
Button is pressed down:[STEREO].
Sound input to channel 1/L can be heard from only the left speaker , and the sound input to channel 2/R can be heard from only the right speaker.

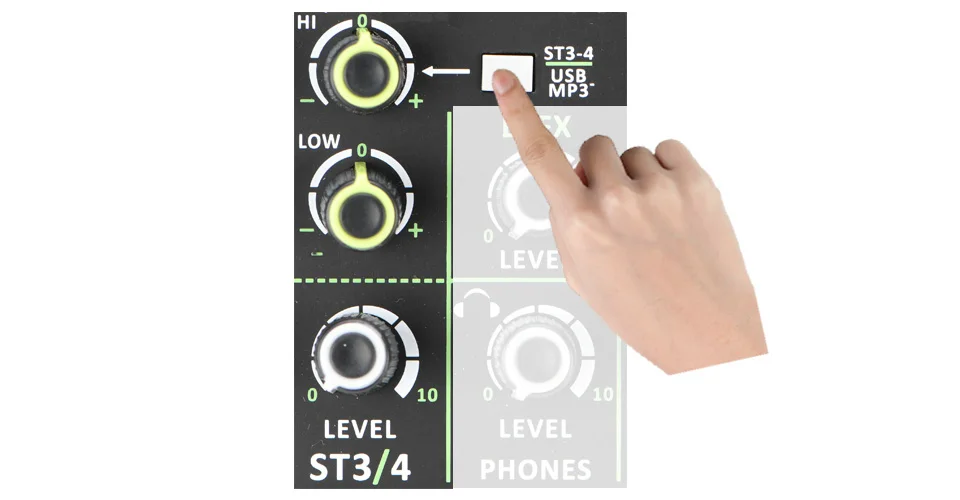

ST3-4/USB MP3:
Line input signals : Button is bounced up.
U-disk/bluetooth/pc input signals: Button is pressed down.

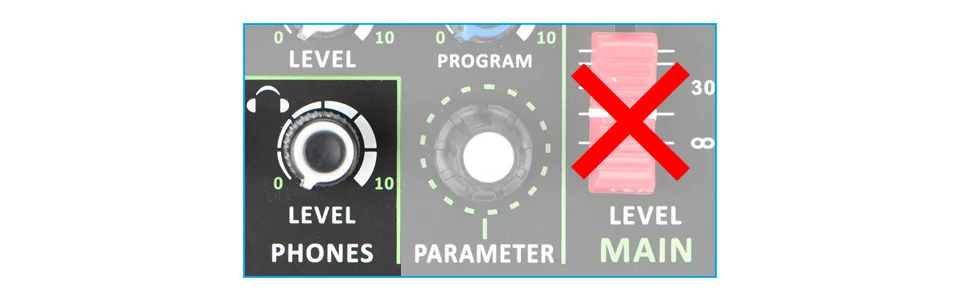

Headphone volume control:
1. [LEVEL PHONES] Knob can adjust the volume of headphone.
2. [MAIN OUT] fader do not control the volume of the headphone.
Packing:

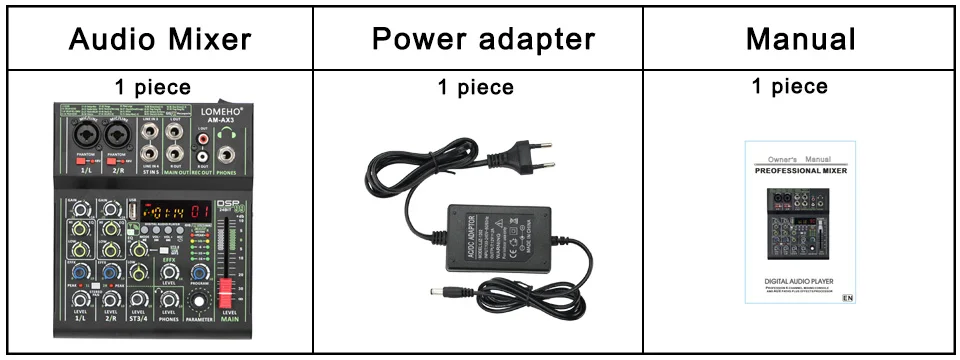

1. Packing list:
Audio mixer 1 pc .
Power adapter 1 pc .
Manual 1 pc .

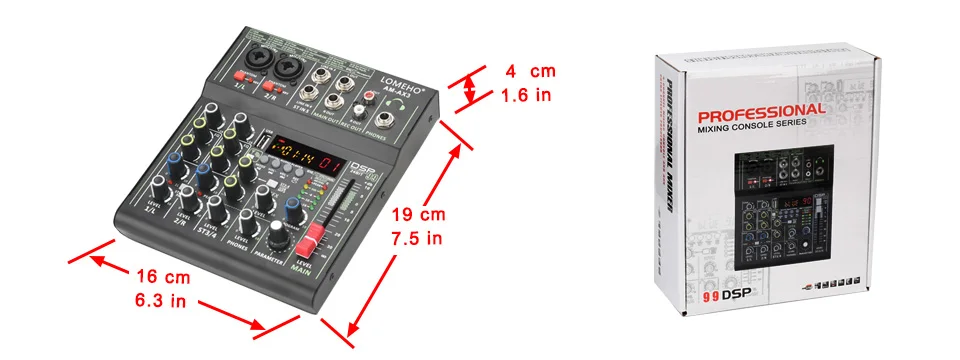

2. Size and packing.
