7 Band Stereo Graphic Equalizer

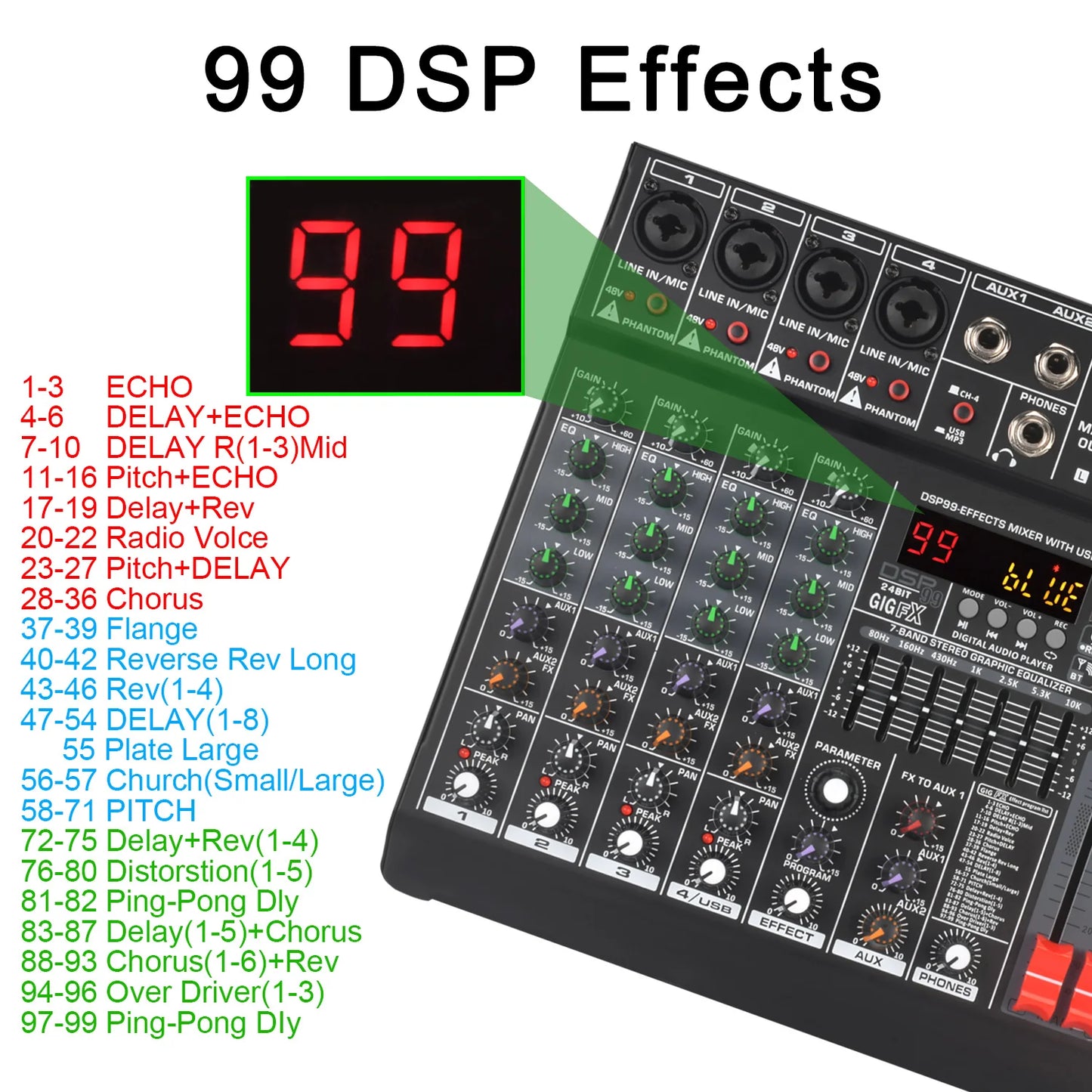

24 Bit 99 Digital Effects

1. Choose Effect

2. Output Effect

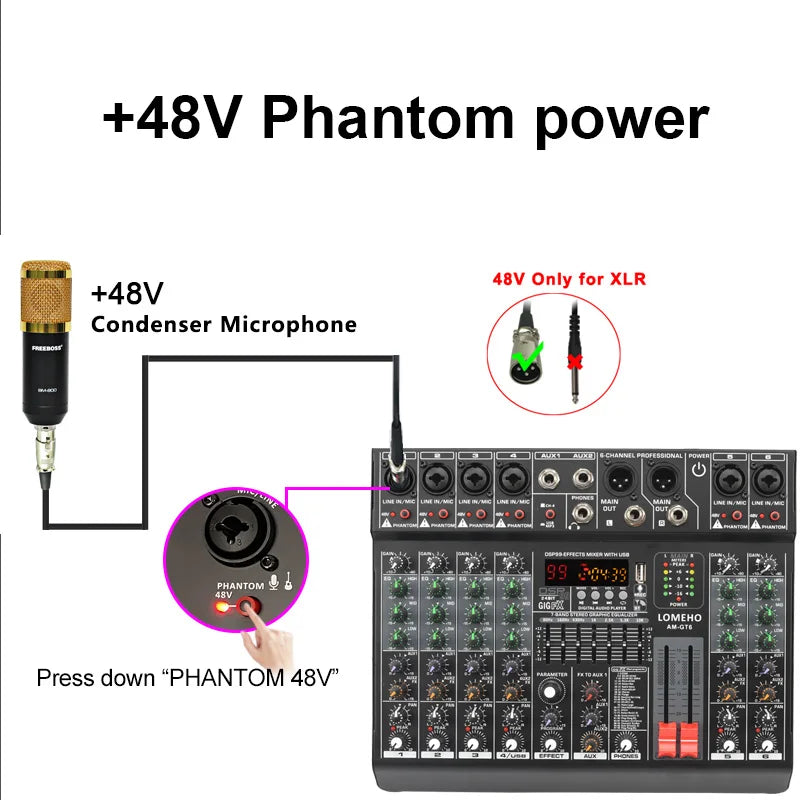

Separately 48V Phantom Power

    48V phantom power only for XLR input, not for 6.35 input.

USB Functions

    1. USB button description

   2. Protective film on the display

There is a protective film on the display to prevent the display from being scratched. If the protective film is not clear, you can tear off the protective film

    3. USB incompatible device

        USB port is not suitable for USB microphone, USB microphone can't work on USB port.

    4. USB signal output to speaker

    5. U-disk play and record

        (1) U-disk format: FAT32

       (2) U-disk play

            A. U-disk play format：MP3,WAV,FLAC,WMA

            B. Insert U-disk, auto play.

       (3) U-disk recording

             A. Record format：MP3

             B.  Enter Recording         C. Pause recording

         D. Exit recording

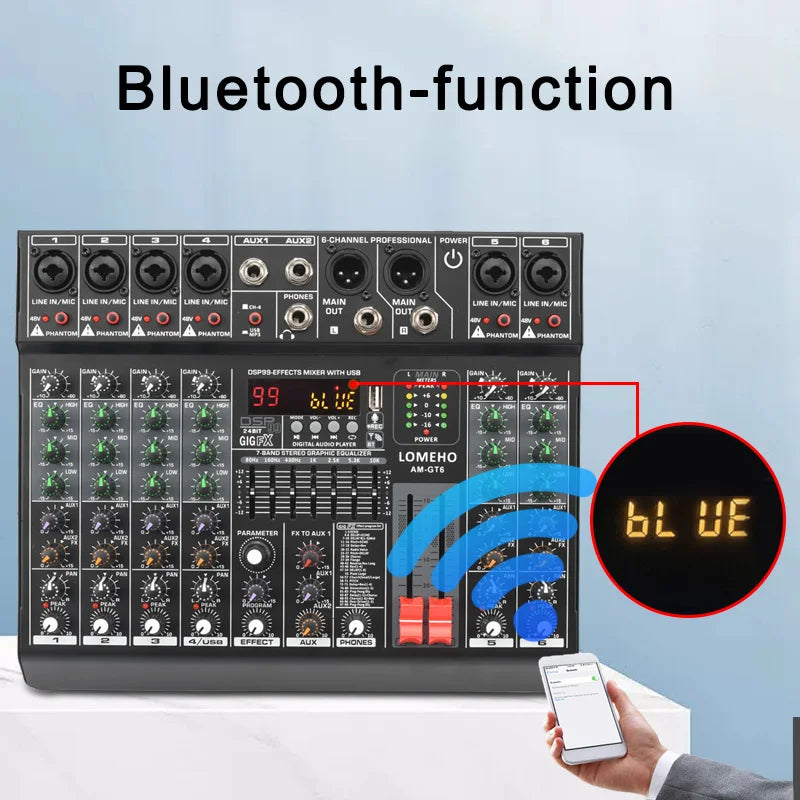

6. Bluetooth Function

      (1) Bluetooth connection steps

    (2) Bluetooth incompatible device

    7. PC Play and Record

      (1) Computer recording settings

Connections with other devices

    1. 48V condenser microphone

If your microphone is a 48V condenser microphone, please use XLR plug connect to mixer and turn on 48V phantom power, otherwise 48V condenser microphone will not work on mixer.

    2. Dynamic microphone

        If your microphone is a dynamic mic, we recommend using an XLR plug connect to mixer, because the sound will be small when you using the 6.35 plug connect to mixer.

(1) When using XLR plug, please turn off 48V phantom power, otherwise the dynamic mic may be burned.

     (2) When using 6.35 plug, the 48V can be turned on or off, because 48V does not power supply to 6.35 socket.

    3. Non-48V condenser microphone will not work on mixer.

    4. DVD/Mobile phone connect to the mixer, please use 6.35 plug, don't use XLR plug.

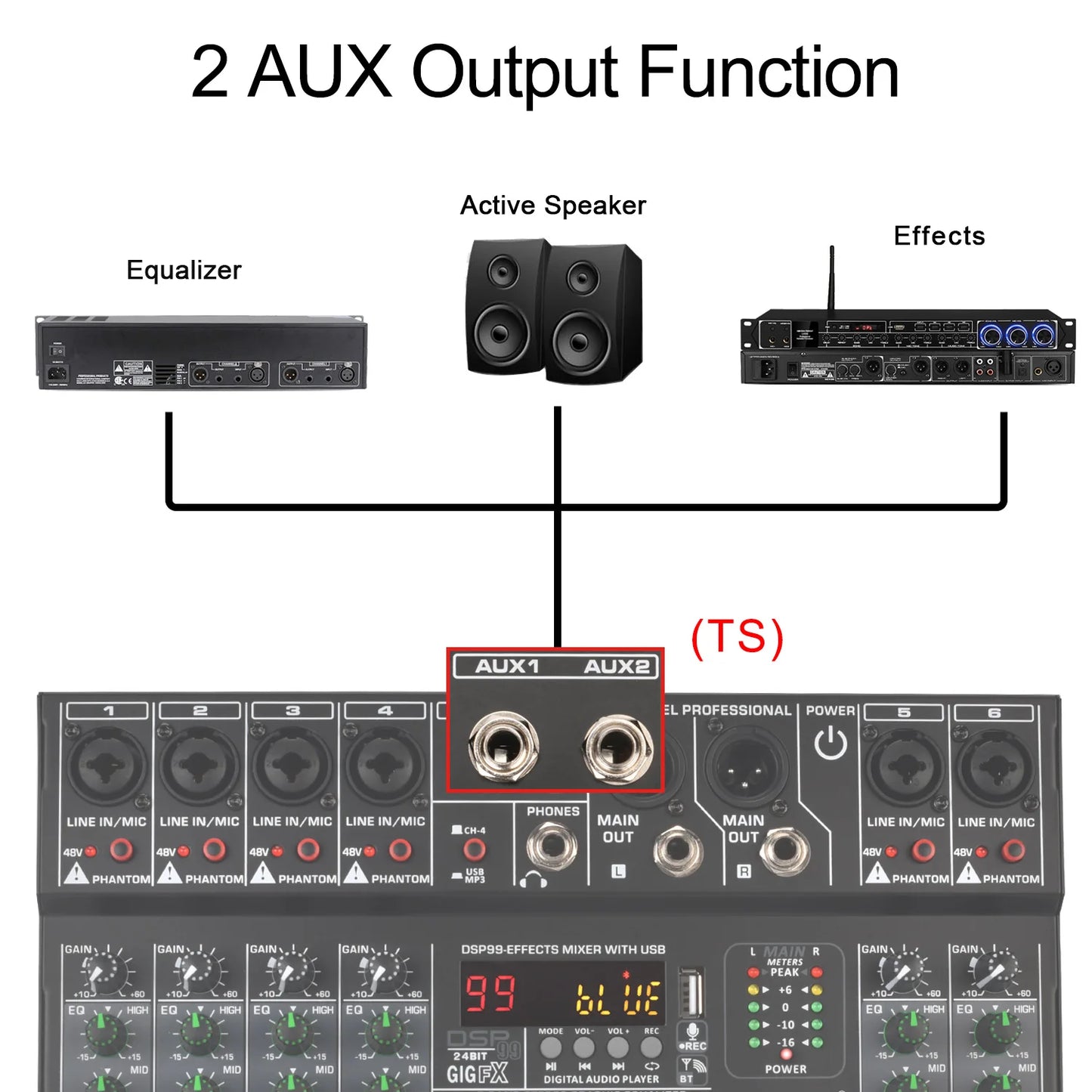

AUX Output

Headphone Volume Control

DC 12V Power Supply

Product Size

Packing List

Product Details
